Light Conveyor Belts (Industrial & Logistics)

Low Noise belt

"Low Noise belt" is a belt that uses a special woven fabric on the underside to reduce the noise made by the belt rubbing against the surface.

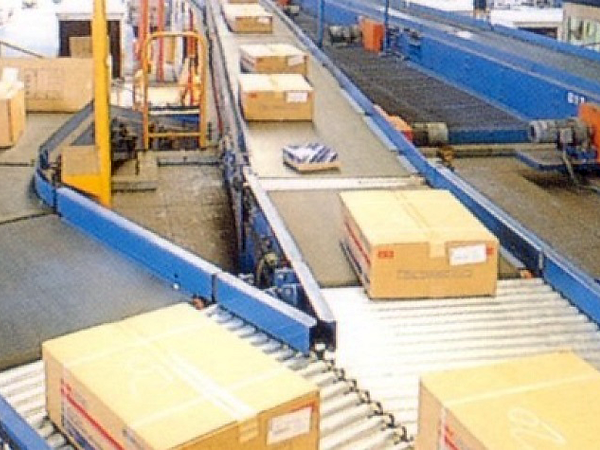

It is ideal for use on production lines where high-speed operation is required.

Product Details

Features

Low Noise

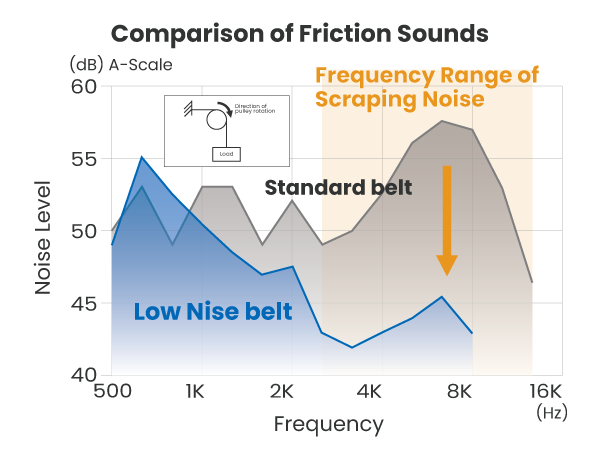

The results of comparing the abrasion noise of the belt back surface and pulley for the standard belt and low noise belt.
When the abrasion noise range is set to 3KHz or more, the standard belt is around 55dB at 6kHz to 8kHz, and the low noise belt is around
45dB, with a noise reduction effect of around 10dB.

Evaluation conditions
Pulley material: Aluminum
Pulley diameter: 100 mm
Pulley peripheral speed: 100 m/min
Belt tension: 0.1 N/mm
Measurement method: A scale
Measurement position: 150 mm from the pulley
