V-belts for Agricultural Machinery

Wrapped type

SUPER KB

  • SUPER KBサムネイル1
  • SUPER KBサムネイル1

SUPER KB is mainly used for lightweight applications but has better impact resistance than FHP belts.

SUPER KB has a thinner belt and is suitable for use with rear idler pulleys.

It has excellent heat resistance, high humidity resistance, oil resistance and crack resistance.

Contact us about this product

Product Details

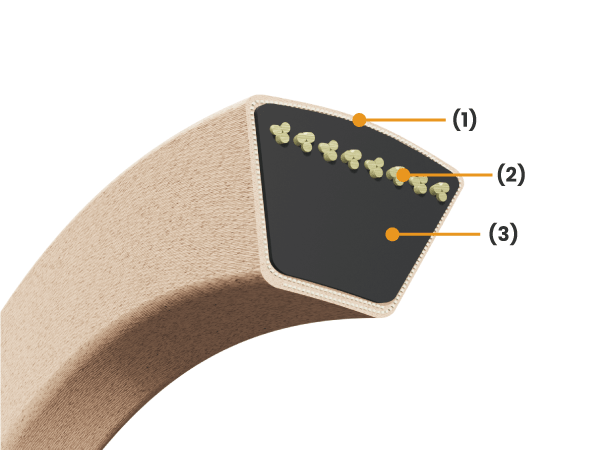

Constituent Materials

  • SUPER KB
    Wrapped type

    SUPER KB

    (1) Cover fabric: Cotton
    (2) Cord: Aramid
    (3) V-core rubber: Chloroprene rubber

    • For severe operating conditions where light duty F HP belts may stretch or pull apart due to heavy shock loads.
    • Aramid fiber is used in the tensile cord for length stability.
    • Special outer covering designed for smooth clutching and backside idler applications.
    • Resist temperatures extremes, high humidity, oil and cracking.
    • Working Temperature：-40～+158℃ / -40～+316.4°F

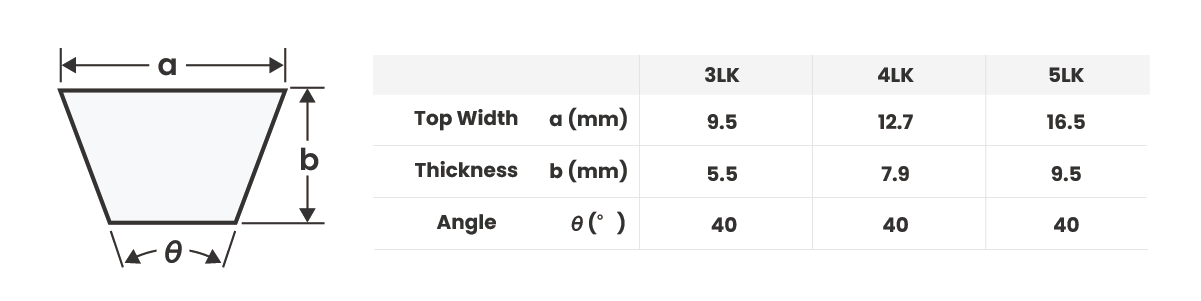

Cross Sectional Dimension

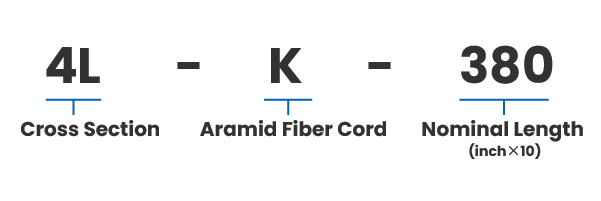

Product Code

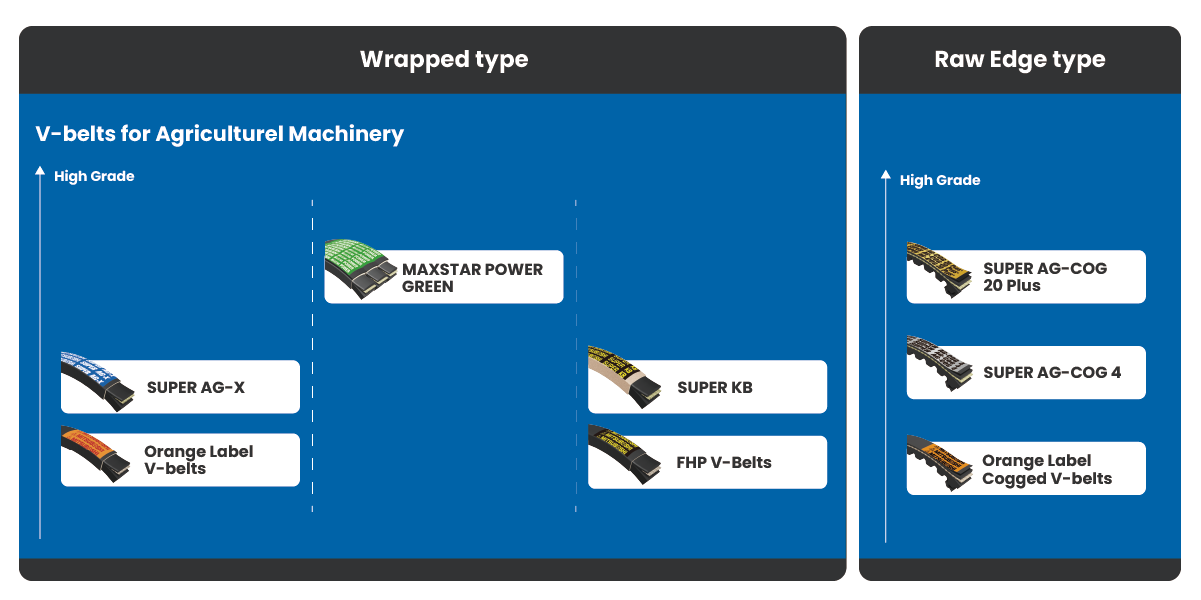

Product Lineup

製品体系図

V-belts for Agricultural Machinery (types: 3L, 4L, 5L) Lineup
