SUPER WEDGE Ⅱ

SUPER WEDGE II V-belt is designed for heavy-duty applications where high torques need to be transmitted and shock loads can occur easily.

By using a special rubber compound mixture, together with an aramid cord and a special cover fabric, we succeeded in developing the strongest belt for applications like road grinders and wood chippers.

Product Details

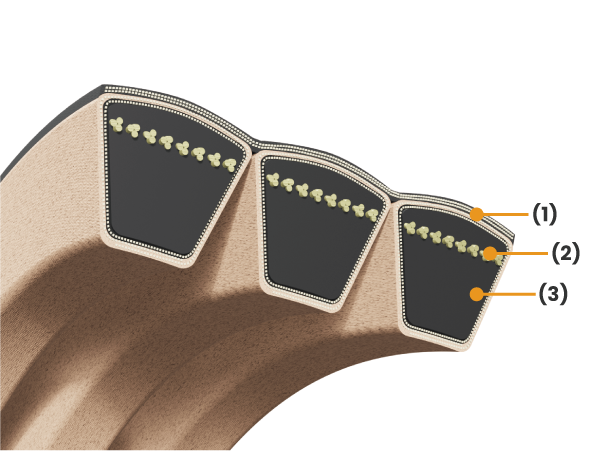

Constituent Materials

SUPER WEDGE Ⅱ

(1) Cover fabric: Cotton/Polyeser mixture(Bareback)
(2) Cord: Aramid
(3) V-core rubber: Chloroprene rubber
The special fabric allows slippage during the shockloads to avoid further damages in the complete power train. Together with our unique production process for banded belts the durability of our belts is matchless on the market. The arched-top belts grant you a sustaimable sucess for your application.
- Designed for extra heavy duty applications.
- Aramid cords with bareback fabric for clutch effect.
- Reduced belt stretch under heavy loads and torque.
- High working loads, high shock loads.
- Heat resistance temperature (℃/℉)：+90/+194
- Cold resistance temperature (℃/℉)：-30/-22
- Max. belt speed (m/s) ：40
- Wear resistance：Normal
- Electric conductivity ：Yes
